Global shutter enhances image clarity, making them ideal for fast barcode scanning

With a global shutter captures the entire image simultaneously, reducing motion artifacts and improving image quality in fast-paced environments.This technology is particularly advantageous in industrial, logistics, or retail settings with dynamic scanning requirements.

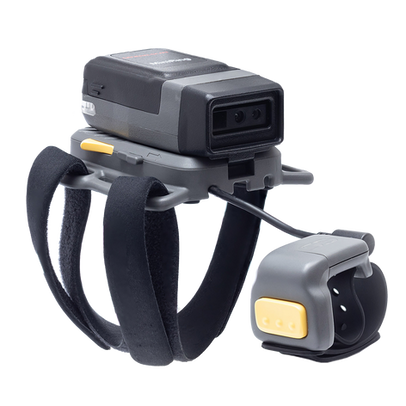

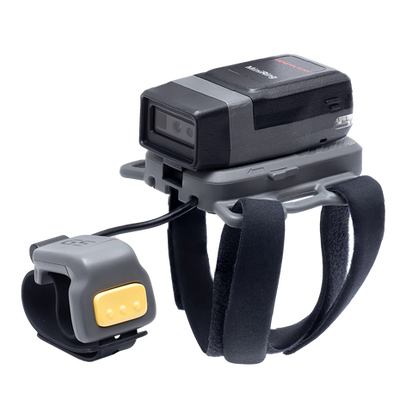

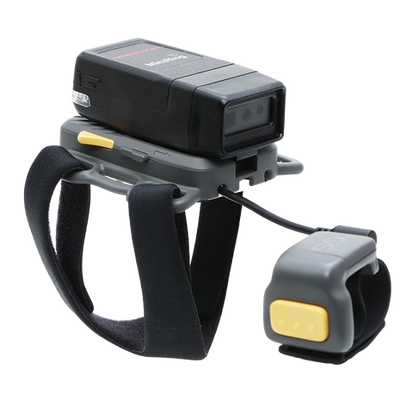

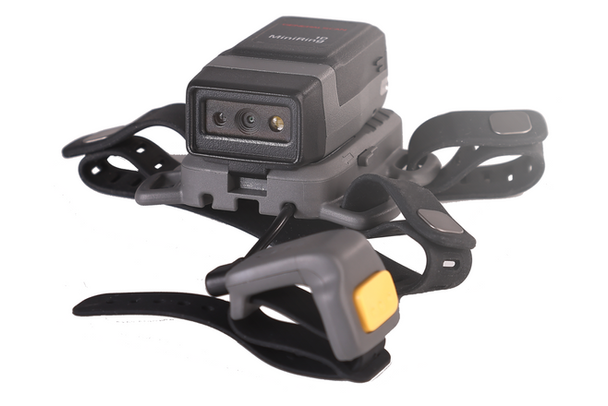

R152X Glove Scanner Series

Dedicated design with efficient power management to provide extended working hours to 18 hours

Incorporate features like low-energy Bluetooth technology, optimized power consumption, and 600maH long-lasting batteries, which ensures prolonged usage between charges, making scanner suitable for demanding environments where continuous scanning is required throughout the day.

Breathable fabric prevents the hand from getting too warm or sweaty

To reduce fatigue, we dedicate select lightweight breathable fabric materials, which ensures that wearing the scanner for long periods doesn’t cause discomfort or strain on the hand and wrist.

Ease of Putting On and Taking Off

Generalscan Ruglove scanner is designed for ease of use, meaning it can be easily put on and taken off. This is particularly important in jobs where users may need to frequently remove the scanner for breaks or other tasks. Flexibility is key in a glove scanner design. Generalscan Ruglove scanner allows for the natural movement of fingers and the hand, enabling the user to perform tasks without restriction or discomfort.

Resources


Specifications for R152X Ruglove Scanner Series


R1521 Ruglove Barcode Scanner

R1522 Ruglove Barcode Scanner

Dimension

66.54mm(L)×34.73mm(W)×25.16mm(D)

66.54mm(L)×34.73mm(W)×25.16mm(D)

Battery Capacity

Standard battery: 400mAh Extended battery: 600mAh

Standard battery: 400mAh Extended battery: 600mAh

Weight

25.8g(Scanner body)

28.3g(Scanner body)

Engine

GS GEA 101

Honeywell N4680

Sensor

2D CMOS Image

2D CMOS Image

Skew, Pitch & Roll

Skew tolerance: ±55° from normal

Pitch tolerance: ±55° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±50° from normal

Pitch tolerance: ±50° from normal

Roll tolerance: 360° from normal

Field of view

Horizontal:±43°;Vertical:±32°

Horizontal:±20°;Vertical:±15°

Charging Time

400mAh, 80min 600mAh, 100min

400mAh, 80min 600mAh, 100min

Battery Life

400mAh, 12h(scan every 5 seconds)

600mAh, 18h(scan every 5 seconds)

400mAh, 8.5h(scan every 5 seconds)

600mAh, 12.8h(scan every 5 seconds)

Glove Type

Ruglove-Lycra: one-size-fits-all(adjustable)

Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable)

Ruglove-Silicone: one-size-fits-all(adjustable)

Bluetooth Profiles

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

USB Interface

USB Type-C

USB Type-C

USB Profiles

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

Drop Spec.

Multiple 4.9ft./1.5m drops to concrete

Multiple 4.9ft./1.5m drops to concrete

Tumble Spec.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Electrostatic Discharge (ESD)

±8kVdc contact discharge; ±15kVdc air discharge

±8kVdc contact discharge; ±15kVdc air discharge

Certification

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

Decode Range

13mil EAN-13           50-325mm

5mil Code39             55-135mm

13mil Code128         50-330mm

15mil QR                  30-190mm

10mil Data Matrix     40-130mm

6.67mil PDF417        50-135mm

5mil Code39              45-180mm

10mil Code39            36-360mm

20mil Code39            71-747mm

5mil Code128            56-158mm

10mil Code128          33-321mm

20mil Code128          53-598mm

100% UPCA              46-390mm

7mil PDF417              55-163mm

10mil PDF417            42-247mm

20mil PDF417            81-490mm

7mil QR                      70-125mm

10mil QR/Data Matrix  40-182mm

20mil QR                     36-367mm
