Apply Ergonomic Fit and Lightweight Material

Generalscan Ruglove scanners are designed to fit comfortably on the hand, much like a regular glove. It is available in three sizes and with left and right hand features to accommodate different hand sizes and shapes. Despite being lightweight and flexible, the materials used are also durable to withstand the rigors of industrial or retail environments, combining comfort with the necessary robustness.

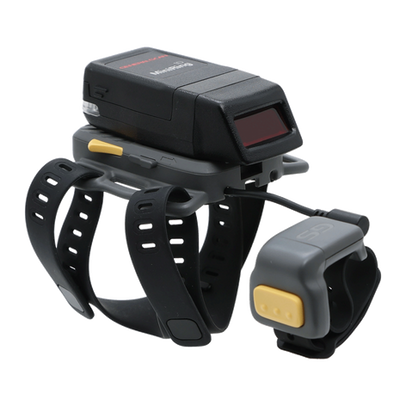

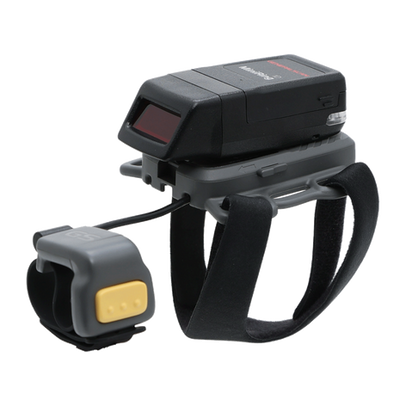

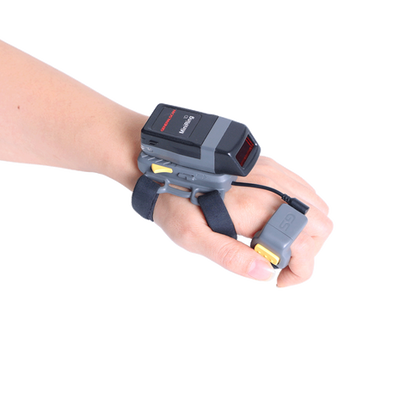

R1120 Glove Scanner

Best-In-Class 1D Laser Scanning Performance and Efficiency

Benefit Zebra Adaptive Scanning Technology, aggressive scanning performance and a wide working range work hand-in-hand to enable the rapid and accurate scanning of bar codes, improved productivity.
Workers enjoy first time every time dependable scanning on any 1D bar code, regardless of lighting conditions.

Wash with water is a significant advantage, enhancing its suitability for hygiene-sensitive environments, contributing to its durability, and simplifying its maintenance

The ease of cleaning and maintenance potentially reduces the need for frequent replacements due to contamination or damage from liquids, offering long-term cost savings. The ability to wash the glove with water ensures that hygiene standards can be consistently maintained. This is especially important in preventing cross-contamination and ensuring a sanitary working environment.

Ease of Putting On and Taking Off

Generalscan Ruglove scanner is designed for ease of use, meaning it can be easily put on and taken off. This is particularly important in jobs where users may need to frequently remove the scanner for breaks or other tasks. Flexibility is key in a glove scanner design. Generalscan Ruglove scanner allows for the natural movement of fingers and the hand, enabling the user to perform tasks without restriction or discomfort.

Resources


Specifications for R1120 Ruglove Scanner


R1120 Ruglove Barcode Scanner

Dimension

75.1mm(L)×34.7mm(W)×25.2mm(D)

Battery Capacity

Standard battery: 400mAh Extended battery: 600mAh

Weight

33g(Scanner body)

Engine

Zebra SE965HP

Sensor

Laser

Skew, Pitch & Roll

Skew tolerance: ±40° from normal

Pitch tolerance: ±65° from normal

Roll tolerance: ±35° from vertical

Field of view

47° Wide, 10° Medium, 10° Narrow

Charging Time

400mAh, 80min 600mAh, 100min

Battery Life

400mAh, 10.3h (scan every 5 seconds)

600mAh, 15.4h (scan every 5 seconds)

Glove Type

Ruglove-Lycra: one-size-fits-all(adjustable)

Ruglove-Silicone: one-size-fits-all(adjustable)

Bluetooth Profiles

HID Keyboard, SPP and Bluetooth low energy (BLE)

USB Interface

USB Type-C

USB Profiles

USB HID Keyboard, USB VCP (Virtual Serial Port)

Drop Spec.

Multiple 4.9ft./1.5m drops to concrete

Tumble Spec.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Electrostatic Discharge (ESD)

±8kVdc contact discharge; ±15kVdc air discharge

Certification

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

Decode Range

5mil Code128 30.5-195.6MM

5mil Code39 30.5-317.5MM

7.5mil Code39 27.9-469.9MM

10mil Code128 30.5-482.6MM

100% UPCA 40.6-685.8MM

15mil Code128 25.4-749.3MM

20mil Code39 35.6-1320.8MM

55mil Code39 86.4-2540MM

100mil Code39 609.9-5181.6MM
