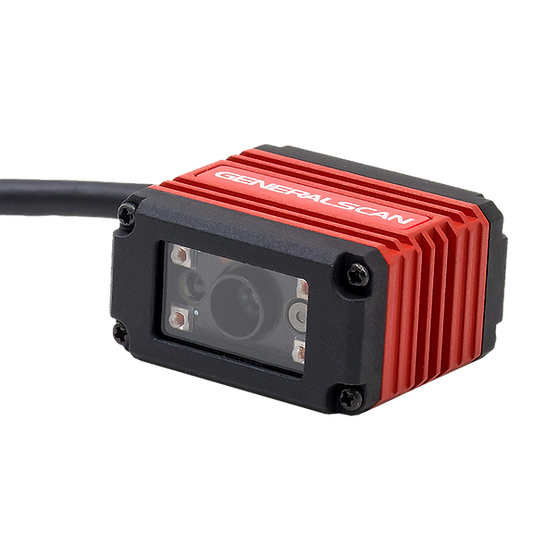

F52 Fixed Mount Scanner
Industrial Fixed-Mount Scanner
Red cross laser aiming provides a clear and precise indication of the scanner's reading zone, allowing users to easily and accurately target specific barcodes
The aiming of GS F52 is red cross laser. The intensity of laser light is stronger, so its center shape does not vary with distances. Aiming point can be seen clearly whether the barcode is under strong illumination or in dark environment.
Versatile and robust Design making for a wide range of applications across various industries
The GS F52 finds diverse applications across a wide range of fields, no matter applications in common industries like swift and efficient check out processed in retail, ticket information inquiry in ticketing, production data-trace in production of precision electronic components, food quality and safety in food production management, and also industires in harsh environment, such as precise tracking of parcels in logistics. In a word, GS F52, with its exceptional performance, provides a dependable barcode reading solution for various scenarios.
Constructed with Industrial-grade materials, Designed to withstand the rigors of harsh industrial Application
Zinc alloy housing makes F52 fixed mount scanner is not only chemical and oil resistant but also IP65-rated sealing, ensuring outstanding reliability and toughness in the most challenging environments. What's more, it is built to survive 5 times each side 3.9ft./1.2M drops to the cement floor.
Resources
Specifications for F52 Industrial Fixed Scanner
F52 Industrial Fixed Scanner | |
Dimension | 36mm(L) x 40mm(W) x 22mm(H) |
Weight | 95g |
Material | Zinc aloy |
Power | 5-30V DC |
Interface | 12 pin M12 Aviation Connector |
Notification | LED, Buzzer |
Optical Resolution | 1280 x 1080 pixels 60FPS |
Shutter Type | Global Shutter |
Field of View | L: 22° |
Illumination | Highlight red light |
Aiming | Red Cross Laser |
Symbol Decode Capability | 1D: Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC 2D: QR, DataMatrix, PDF417, Aztec |
Network Connections | USB COM, USB Keyboard; RS232; Ethernet(TCP/IP) |
Configurable IO | One optically isolated input, NPN/PNP/Relay available One optically isolated output |
Ambient Light | Max 100,000 lux (direct sunlight) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 70°C |
Drop Spec. | 6 sides x 5 times/side = 30 times from 3.9 ft. /1.2m drops to cement floor |
Sealing | IP65 |
Electrostatic Discharge (ESD) | ±8kv dc contact discharge ±15kv dc air discharge ±20kv dc coupling discharge |
Decode Range | 3.0mil Code 39 95.0-122.0MM
5.0mil Code 39 70.0-232.0MM
6.57mil Code 39 65.0-245.0MM
9.86mil Code 39 85.0-295.0MM
13.0mil UPC 40.0-330.0MM
7.0mil DM 86.0-175.0MM
10.0mil DM 60.0-235.0MM
|
