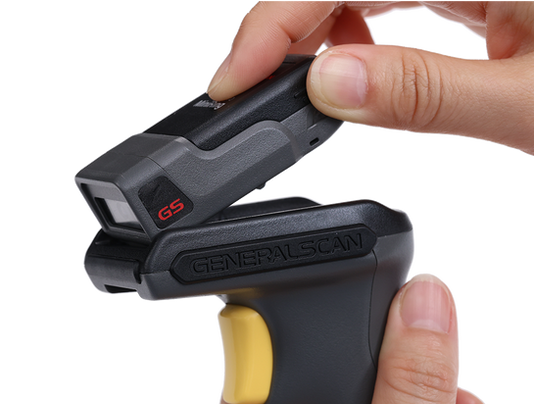

Generalscan Flexgrip adapts for maximum user preference and comfort
Flexgrip permits scanners to switch freely among different wearing styles, allowing users to choose the most traditional and convenient option for their specific needs, reducing fatigue, increasing comfort, especially during long shifts.

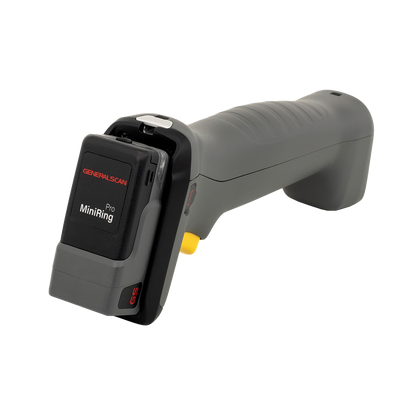

R352X Flexgrip Scanner Series
With Zebra SE4107 engine, the bright, rectangular illumination field and green LED aiming spot enable accurate aiming for exceptional ease of use
White illumination increases scanning flexibility by enabling the easy capture of any color barcode, with the megapixel sensor, wide field of view and broad 20 in./50.8cm working range, barcode capture is faster and easier than ever.
Increase Productivity and Reduce the Need for Multiple Devices
By allowing the user to choose the most efficient style between wired and wireless for their tasks, Flexgrip scanners improved operational efficiency. Instead of requiring different scanners for various tasks or user preferences, one device with double using options can cater to a broader range of needs. This consolidation also leads to cost savings and simplified device management.
Ease of Transition among Tasks and Good for Sharing Use
Workers can easily switch between different wearing styles as they move between different tasks, offering flexibility and time efficiency. In environments where scanners are shared among employees, the ability to change wearing styles can be advantageous for hygiene and personal preference.
Resources
Specifications for R352X Flexgrip Scanner Series
| R3520 Flexgrip Barcode Scanner | R3521 Flexgrip Barcode Scanner |
Dimension | 64.9mm(L) × 34.5mm(W) × 24.7mm(D) | 64.9mm(L) × 34.5mm(W) × 24.7mm(D) |
Weight | 30.3g(Scanner body) | 39.2g(Scanner body) |
Battery Capacity | 600mAh | 600mAh |
Battery Life per Full Charge | 16.1h(scan every 5 seconds) | 12.9h(scan every 5 seconds) |
Charging | 5V 1A | 5V 1A |
Charging Time | 120min. | 120min. |
Notification | LED, Buzzer, Vibration | LED, Buzzer, Vibration |
Scan Engine | Zebra SE2707 | Zebra SE4107 |
Skew, Pitch & Roll | Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal | Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Field of view | Horizontal ±42° Vertical ±28° | Horizontal ±44.5° Vertical ±33.5° |
Shutter | Rolling shutter | Rolling shutter |
Illumination | Red LED | Warm White LED |
Aiming | Red LED | Green LED |
Optical Resolution | 1280x960 pixels | 1280x960 pixels |
Network Connections | USB, Bluetooth | USB, Bluetooth |
USB Interface | USB Type-C | USB Type-C |
USB Profiles | USB HID Keyboard, USB VCP (Virtual Serial Port) | USB HID Keyboard, USB VCP (Virtual Serial Port) |
Multilingual Keyboards | USB HID mode supports multilingual keyboards | USB HID mode supports multilingual keyboards |
Bluetooth Profiles | HID Keyboard, SPP, and Bluetooth low energy(BLE) | HID Keyboard, SPP, and Bluetooth low energy(BLE) |
Bluetooth Range | Communication distance connected to mobile phone ＞164.04ft./50m(with obstructions) | Communication distance connected to mobile phone ＞164.04ft./50m(with obstructions) |
Symbol Decode Capability | 1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128, Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix | 1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix，GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix |
Offline Mode | Support storage of 4388 EAN-13 barcodes | Support storage of 4388 EAN-13 barcodes |
Ambient Light Immunity | Max 107,639lux(direct sunlight) | Max 107,639lux(direct sunlight) |
Operating Temperature | -10℃~50℃ | -10℃~50℃ |
Storage Temperature | -10℃~50℃ | -10℃~50℃ |
Humidity | 5% - 85% non-condensing | 5% - 85% non-condensing |
Drop Spec. | Multiple 4.9ft./1.5M drops to concrete | Multiple 4.9ft./1.5M drops to concrete |
Tumble Spec. | Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. | Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Electrostatic Discharge (ESD) | ±8kv dc discharge ±15kv air discharge | ±8kv dc discharge ±15kv air discharge |
Certification | CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC | CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
Software Supported | Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service | Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service |
Decode Range | 5mil Code128 63-127mm 5mil Code39 51-162mm 6.6mil PDF417 63-160mm 10mil PDF417 45-228mm 20mil Code39 50-495mm 100% UPC 50-317mm 20mil DataMatrix 38-343mm 20mil QR 38-279mm | 5mil Code128 71-229mm 5mil Code39 61-241mm 6.6mil PDF417 61-203mm 10mil DataMatrix 74-216mm 100% UPCA 46-495mm 15mil QR 30-292mm 20mil QR 30-356mm |
