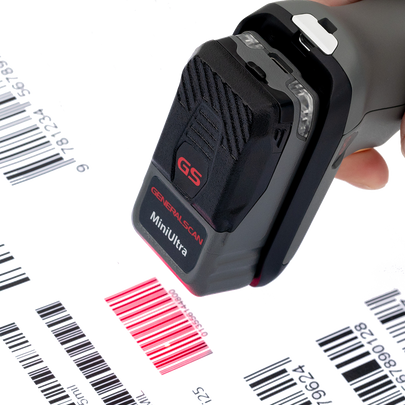

With Dual-core Hardware PL5000 Decoder, it can decode in record time, even on damaged, poorly printed and low contrast barcodes or in poor lighting condition

The PL5000 hardware decoder boosts worker productivity with unmatched decode times, superior motion tolerance, plus advanced barcode and data capture processing features, plus support for the newest barcode symbologies.

R552X Flexgrip Scanner Series

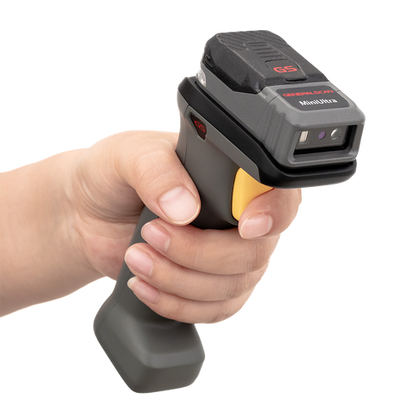

Generalscan Flexgrip adapts for maximum user preference and comfort

Flexgrip permits scanners to be switched freely between wired and wireless versions, giving the users the freedom to choose the most convenient way to meet their specific needs. The ergonomic design of the Flexgrip reduces fatigue and increases comfort, especially for workers working long shifts.

Whether the barcode is in hand or over 40ft./12.2m away, R5524 can capture it!

R5524 features a green laser aimer that’s up to 7x more visible than red, even in bright sunlight, and Zebra’s PRZM Intelligent Imaging Technology to deliver first-time-every-time decoding. With adjustable illumination and intelligent autofocus, users do not have to sacrifice scanning speed for working range.

Ease of Transition among Tasks and Good for Sharing Use

Workers can easily switch between different wearing styles as they move between different tasks, offering flexibility and time efficiency. In environments where scanners are shared among employees, the ability to change wearing styles can be advantageous for hygiene and personal preference.

Resources


Specifications for R552X Flexgrip Scanner Series


R5520 Flexgrip Barcode Scanner

R5521 Flexgrip Barcode Scanner

R5522 Flexgrip Barcode Scanner

R5523 Flexgrip Barcode Scanner

R5524 Flexgrip Barcode Scanner

Dimension

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

Weight

37g(Scanner body)

37g(Scanner body)

40.7g(Scanner body)

38.7g(Scanner body)

37.5g(Scanner body)

Battery Capacity

600mAh

600mAh

600mAh

600mAh

600mAh

Battery Life per Full Charge

10.25h(scan every 5 seconds)

9.93h(scan every 5 seconds)

9h(scan every 5 seconds)

8h(scan every 5 seconds)

6.9h(scan every 5 seconds, 10cm reading) 4h(scan every 5 seconds, 1m reading)

Charging

5V 1A

5V 1A

5V 1A

5V 1A

5V 1A

Charging Time

120min.

120min.

120min.

120min.

120min.

Notification

LED, Buzzer, Vibration

LED, Buzzer, Vibration

LED, Buzzer, Vibration

LED, Buzzer, Vibration

LED, Buzzer, Vibration

Scan Engine

Zebra SE4710

Zebra SE4770

SE4750MR

Honeywell N6803

Zebra SE55

Skew, Pitch & Roll

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal  Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Field of view

Horizontal 42° Vertical 28°

Horizontal 48° Vertical 30°

Horizontal 31° Vertical 23°

Near: Horizontal 48°, Vertical 21° Far: Horizontal 20°, Vertical 12°

Horizontal 37° Vertical 21.4°

Illumination

Red LED

White LED

White LEDx2

White LED

White LED

Aiming

Red LED

Red Cross Laser

Red Cross Laser

Red Laser

Green Laser

Shutter

Rolling shutter

Global shutter

Global shutter

Global shutter

Global shutter

Optical Resolution

1280x800 pixels

1280x800 pixels

1280x960 pixels

Near: 1920x1200 pixels


Far: 1280x800 pixels

2688x1520 pixels

Network Connections

USB, Bluetooth

USB, Bluetooth

USB, Bluetooth

USB, Bluetooth

USB, Bluetooth

USB Interface

USB Type-C

USB Type-C

USB Type-C

USB Type-C

USB Type-C

USB Profiles

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

Multilingual Keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

Bluetooth Profiles

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

Bluetooth Range

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Symbol Decode Capability

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix, Dotcode, OCR

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix, Dotcode, OCR

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code39, MSI, Composite 2D: PDF417, Postal Codes, MicroPDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix, DotCode, OCR

1D: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation 2D: Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (HanXin Code), Grid Matrix, Dot Code Postal: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix, Dotcode, OCR

Offline Mode

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Ambient Light Immunity

Max 107,639lux(direct sunlight)

Max 107,639lux(direct sunlight)

Max 107,639lux(direct sunlight)

Max 107,639lux(direct sunlight)

Max 107,639lux(direct sunlight)

Operating Temperature

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

Storage Temperature

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

Humidity

5% - 85% non-condensing

5% - 85% non-condensing

5% - 85% non-condensing

5% - 85% non-condensing

5% - 85% non-condensing

Drop Spec.

Multiple 4.9ft./1.5m drops to concrete

Multiple 4.9ft./1.5m drops to concrete

Multiple 4.9ft./1.5m drops to concrete

Multiple 4.9ft./1.5m drops to concrete

Multiple 4.9ft./1.5m drops to concrete

Tumble Spec.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Electrostatic Discharge (ESD)

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

±8kvdc contact discharge ±15kvdc air discharge

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

Certification

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

Software Supported

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Decode Range

4mil Code 39 84.0-114.0MM

5mil Code 128 71.0-108.0MM

5mil Code 39 50.8-343.0MM

5mil PDF417 79.0-213.0MM

10mil DataMatrix 74.0-257.0MM

100%UPC-A 46.0-660.0MM

20mil Code39 50.8-762.0MM

3mil Code 39 76.0-147.0MM

5mil Code 128 58.0-249.0MM

5mil PDF417 76.0-201.0MM

6.67mil PDF417 64.0-257.0MM

10mil DataMatrix 53.0-279.0MM

100%UPC-A 41.0-632.0MM

15mil Code 128 61.0-706.0MM

20mil Code 39 41.0-917.0MM

5mil Code 128 188.0-406.0MM

5mil PDF417 206.0-333.0MM

7.5mil DataMatrix 211.0-325.0MM

10mil DataMatrix 178.0-432.0MM

13mil UPC-A 58.0-965.0MM

15mil Code 128 102.0-1016.0MM

20mil Code 39   53.0-1372.0MM

100mil Code 39 279.0-4369.0MM

160mil DataMatrix 292.0-3505.0MM

20mil QR Code 71.0-676.0MM

5mil Code 39 137 - 396MM 7mil PDF 137 - 415MM 10mil Code 128 90 - 1399MM 10mil QR Code 128 - 412MM 13mil UPC 68 - 1690MM 20mil Code 88 - 2848MM 55mil Code 39 ---- - 5912MM 100mil Code39 ---- - 9849MM

3mil Code 39             69.0-411.0MM

5mil Code 39             64.0-676.0MM

5mil PDF417              71.0-498.0MM

6.7mil PDF417            66.0-650.0MM

10mil DataMatrix       56.0-688.0MM

100%UPC-A(13mil)    64.0-1800.0MM

15mil Code 128         65.0-2400.0MM

20mil Code 39          100.0-3300.0MM

55mil Code 39          215.0-3900.0MM

100mil Code 39        410.0-4200.0MM

100mil DataMatrix    85.0-7200.0MM
