Competitive Price Makes the MK III Glove an Affordable Accessory

Mark III glove stands out as the most cost-effective wearable scanner accessory. Its attractive price positions it as a budget-friendly option, ensuring that it is within reach for a wide range of users. This affordability, coupled with its competitive pricing strategy, makes it a compelling choice for those seeking quality without breaking the bank.

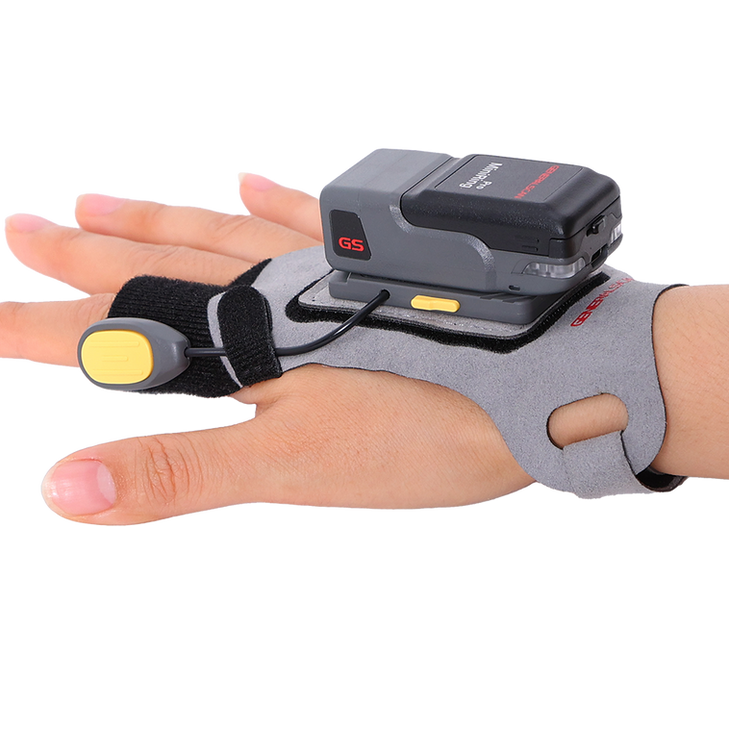

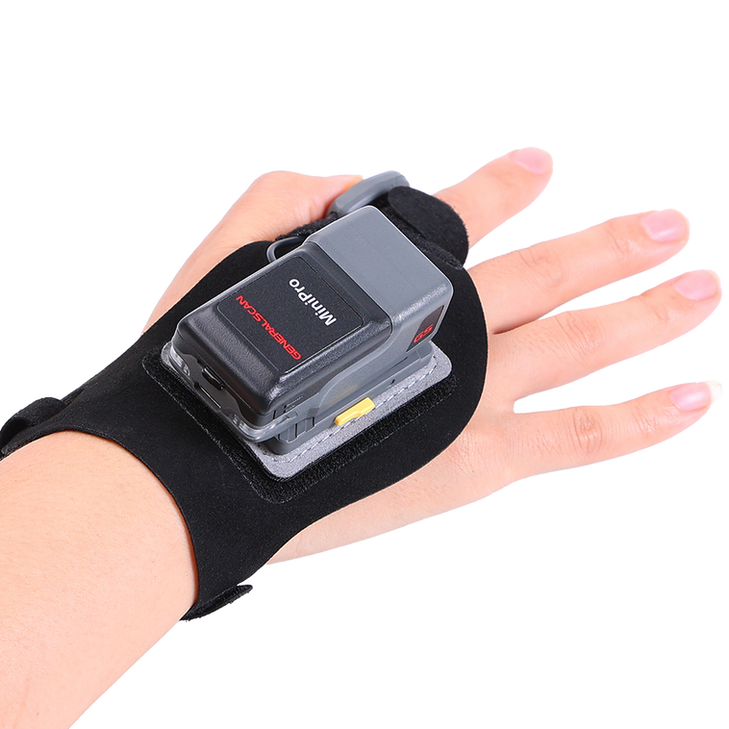

R352X Glove Scanner Mark III Series

Top-Tier Grip Comes from the Unmatched "Bare Palm" Holding Ability

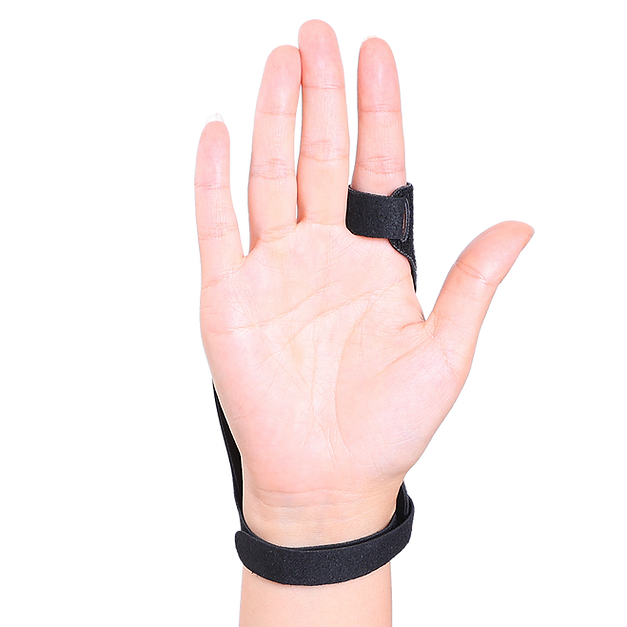

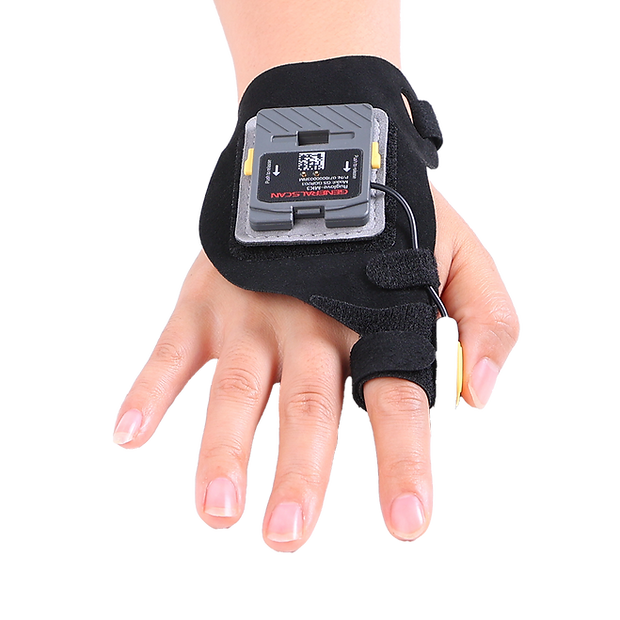

The ingenious hand mount on the back provides a completely unrestricted palm. This design stands out from other back-of-hand scanners that typically involve a bulky strap or cover the palm entirely. Workers achieve a more secure grip on items by this completely bare palm, ultimately enhancing productivity and minimizing breakage.

Prepared for Immediate Use

Users can easily understand how to wear the MK III glove without requiring specialized training. With adjustable wrist and finger straps, the MK III accommodates a wide range of hand sizes, removing the necessity to order various gloves of different sizes or handle multiple gloves

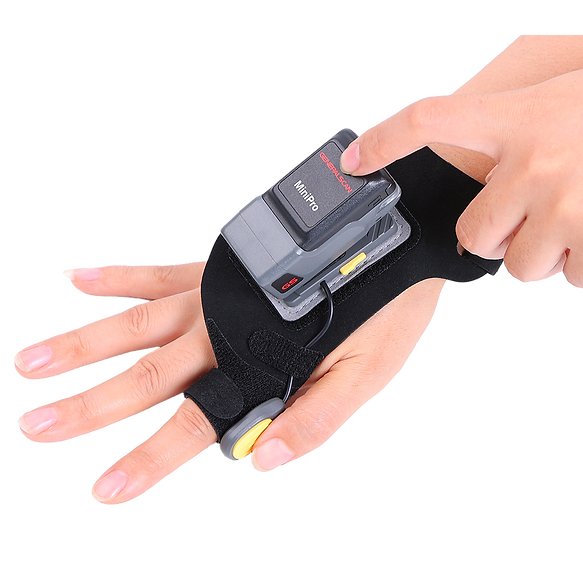

Flexible Trigger Button Placement for User Comfort

The trigger button can be placed freely and flexibly, making it easy for users to choose the most suitable position according to their daily use habits, and keeping them comfortable even after a long time of triggering.

Resources


Specifications for R352X Ruglove Scanner Series


R3520 Ruglove Barcode Scanner

R3521 Ruglove Barcode Scanner

Dimension

64.8mm(L)×34.6mm(W)×24.8mm(D)

64.8mm(L)×34.6mm(W)×24.8mm(D)

Weight

30.3g(scanner body)

39.2g(scanner body)

Battery Capacity

600mAh

600mAh

Battery Life per Full Charge

16.1h(scan every 5 seconds)

12.9h(scan every 5 seconds)

Charging

5V 1A

5V 1A

Charging Time

120min.

120min.

Notification

LED, Buzzer, Vibration

LED, Buzzer, Vibration

Glove Type

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Scan Engine

Zebra SE2707

Zebra SE4107

Skew, Pitch & Roll

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Optical Resolution

640x480 pixels

1280x960 pixels

Illumination

Red LED

Warm White LED

Aiming

Red LED

Green LED

Network Connections

USB, Bluetooth

USB, Bluetooth

USB Interface

USB Type-C

USB Type-C

USB Profiles

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

Multilingual Keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

Bluetooth Profiles

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

Bluetooth Range

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Symbol Decode Capability

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal CodesMicro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix

Offline Mode

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Ambient Light Immunity

Max 107639lux(direct sunlight)

Max 107639lux(direct sunlight)

Operating Temperature

-10℃~50℃

-10℃~50℃

Storage Temperature

-10℃~50℃

-10℃~50℃

Humidity

5% - 85% non-condensing

5% - 85% non-condensing

Drop Spec.

Multiple 4.9ft./1.5M drops to concrete

Multiple 4.9ft./1.5M drops to concrete

Tumble Spec.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Electrostatic Discharge (ESD)

±8kv dc discharge ±15kv air discharge

±8kv dc discharge ±15kv air discharge

Certification

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

Software Supported

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Decode Range

5mil Code128             63-127mm

5mil Code39               51-162mm

6.6mil PDF417           63-160mm

10mil PDF417            45-228mm

20mil Code39             50-495mm

100% UPC                  50-317mm

20mil DataMatrix         38-343mm

20mil QR                     38-279mm

5mil Code128          71-229mm

5mil Code39           61-241mm

6.6mil PDF417         61-203mm

10mil DataMatrix     74-216mm

100% UPCA            46-495mm

15mil QR                 30-292mm

20mil QR                30-356mm
