Ease of Putting On and Taking Off

Generalscan Ruglove scanner is designed for ease of use, meaning it can be easily put on and taken off. This is particularly important in jobs where users may need to frequently remove the scanner for breaks or other tasks. Flexibility is key in a glove scanner design. Generalscan Ruglove scanner allows for the natural movement of fingers and the hand, enabling the user to perform tasks without restriction or discomfort.

R552X Glove Scanner Mark II Series

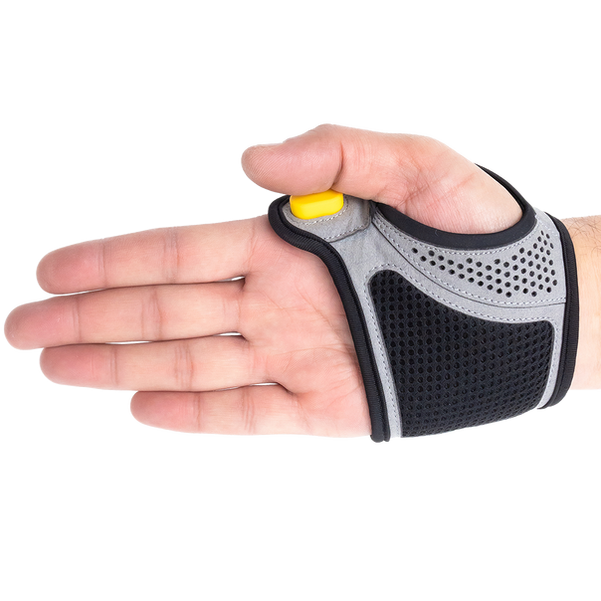

The MK II Glove Completely Covers the Palm of the Hand for a More Secure Fit

The full palm coverage of the MK II glove plays a key role in enhancing stability. The glove wraps around the palm to help evenly distribute pressure, reducing strain and discomfort, while also providing a higher level of external protection.

The MK II Glove is Conveniently Washable for Effortless Maintenance

The washable nature of the MK II glove enhances its suitability for environments with strict hygiene standards, mitigating cross-contamination risks and ensuring a clean workplace. By simplifying cleaning and maintenance, this feature reduces the frequency of replacements caused by liquid damage or contamination, resulting in long-term cost savings.

Thanks to Its Materials' Resilience and Corrosion Resistance, MK II Glove has Long Lifespan

The materials used on the surface, in contact with the skin, and around the thumb-hole of MK II glove provide durability to withstand daily friction and wear. This helps to uphold the structural stability of the gloves, prevent deformation, and ultimately extend their lifespan.

Resource


Specifications for R552X Ruglove Scanner Series


R5520 Ruglove Barcode Scanner

R5521 Ruglove Barcode Scanner

R5522 Ruglove Barcode Scanner

R5523 Ruglove Barcode Scanner

R5524 Ruglove Barcode Scanner

Dimension

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

70.0mm(L)×36.0mm(W)×26.8mm(D)

Weight

37g(Scanner body)

37g(Scanner body)

40.7g(Scanner body)

38.7g(Scan body)

37.5g(Scanner body)

Battery Capacity

600mAh

600mAh

600mAh

600mAh

600mAh

Battery Life per Full Charge

10.25h(scan every 5 seconds)

9.93h(scan every 5 seconds)

9.0h (to be triggered every 5 seconds)

8 hours (scan every 5 seconds)

6.9h (scan every 5 seconds, 10 centimeter reading) 4h(scan every 5 seconds, 1 meter reading)

Charging

5V 1A

5V 1A

5V 1A

5V 1A

5V 1A

Charging Time

120min.

120min.

120min.

120min.

120min.

Notification

LED, Buzzer, Vibration

LED, Buzzer, Vibration

LED, Buzzer, Vibration

LED, Buzzer, Vibration

LED, Buzzer, Vibration

Glove Type

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable)

Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Scan Engine

Zebra SE4710

Zebra SE4770

SE4750MR

Honeywell N6803

Zebra SE55

Skew, Pitch & Roll

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal  Pitch tolerance: ±60° from normal  Roll tolerance: 360° from normal

Skew tolerance: ±60° from normal

Pitch tolerance: ±60° from normal

Roll tolerance: 360° from normal

Illumination

White LED

White LED

White LEDx2

White LED

White LED

Aiming

Green LED

Red Cross Laser

Red Laser

Red Laser

Green Laser

Optical Resolution

1280x800 pixels

1280x800 pixels

1280x960 pixels

Near: 1920x1200 pixels

Far: 1280x800 pixels

2688x1520 pixels

Network Connections

USB, Bluetooth

USB, Bluetooth

USB, Bluetooth

USB, Bluetooth

USB, Bluetooth

USB Interface

USB Type-C

USB Type-C

USB Type-C

USB Type-C

USB Type-C

USB Profiles

USB HID Keyboard, USB VCP(Virtual Serial Port)

USB HID Keyboard, USB VCP(Virtual Serial Port)

USB HID Keyboard, USB VCP(Virtual Serial Port)

USB HID Keyboard, USB VCP(Virtual Serial Port)

USB HID Keyboard, USB VCP(Virtual Serial Port)

Multilingual Keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

Bluetooth Profiles

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

Bluetooth Range

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Symbol Decode Capability

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

Offline Mode

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Ambient Light Immunity

Max 107639lux(direct sunlight)

Max 107639lux(direct sunlight)

Max 107639lux(direct sunlight)

Max 107639lux(direct sunlight)

Max 107639lux(direct sunlight)

Operating Temperature

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

Storage Temperature

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

Humidity

5% - 85% non-condensing

5% - 85% non-condensing

5% - 85% non-condensing

5% - 85% non-condensing

5% - 85% non-condensing

Drop Spec.

Multiple 4.9ft./1.5M drops to concrete

Multiple 4.9ft./1.5M drops to concrete

Multiple 4.9ft./1.5M drops to concrete

Multiple 4.9ft./1.5M drops to concrete

Multiple 4.9ft./1.5M drops to concrete

Tumble Spec.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Electrostatic Discharge (ESD)

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

Certification

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

Software Supported

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Decode Range

4mil Code 39 84.0-114.0MM

5mil Code 128 71.0-108.0MM

5mil Code 39 50.8-343.0MM

5mil PDF417 79.0-213.0MM

10mil DataMatrix 74.0-257.0MM

100%UPC-A 46.0-660.0MM

20mil Code39 50.8-762.0MM

3mil Code 39 76.0-147.0MM

5mil Code 128 58.0-249.0MM

5mil PDF417 76.0-201.0MM

6.67mil PDF417 64.0-257.0MM

10mil DataMatrix 53.0-279.0MM

100%UPC-A 41.0-632.0MM

15mil Code 128 61.0-706.0MM

20mil Code 39 41.0-917.0MM

5mil Code 128 188.0-406.0MM

5mil PDF417 206.0-333.0MM

7.5mil DataMatrix 211.0-325.0MM

10mil DataMatrix 178.0-432.0MM

13mil UPC-A 58.0-965.0MM

15mil Code 128 102.0-1016.0MM

20mil Code 39   53.0-1372.0MM

100mil Code 39 279.0-4369.0MM

160mil DataMatrix 292.0-3505.0MM

20mil QR Code 71.0-676.0MM

5mil Code 39 137 - 396MM 7mil PDF 137 - 415MM 10mil Code 128 90 - 1399MM 10mil QR Code 128 - 412MM 13mil UPC 68 - 1690MM 20mil Code 88 - 2848MM 55mil Code 39 ---- - 5912MM 100mil Code39 ---- - 9849MM

3mil Code 39 69.0-411.0MM

5mil Code 39 64.0-676.0MM

5mil PDF417 71.0-498.0MM

6.7mil PDF417 66.0-650.0MM

10mil DataMatrix 56.0-688.0MM

100%UPC-A(13mil) 64.0-1800.0MM

15mil Code 128 65.0-2400.0MM

20mil Code 39 100.0-3300.0MM

55mil Code 39 215.0-3900.0MM

100mil Code 39 410.0-4200.0MM

100mil DataMatrix 85.0-7200.0MM
