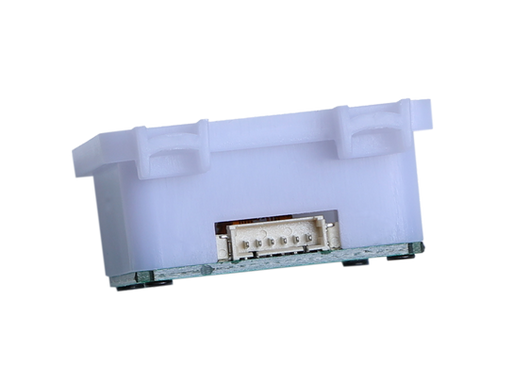

Scan Module GMA4433
Better Performance Guaranteed by A Flat Housing Design
The lens of GMA4433 is embedded in a flat-surface housing, which greatly narrows the angle of incident light, reduces reflections, and optimizes the scanning environment, especially when scanning barcodes on the screen. The flat housing is also dust and water resistant for longer life.
2D Generic Scan Module for Kiosk
Main Feature
1
Flat Housing Design
A flat surface reduces the angle of incident light, decreasing glare and improving barcode recognition reliability.
2
A Variety of Communication Interfaces Available
It supports TTL232, USB, and optional RS232, ensuring compatibility with various control boards and system platforms for use in industrial control, embedded systems, and self-service terminals.
3
Paper and Screen Code Reading are Available
GMA3533 accurately reads paper and on-screen QR codes, with optimized performance for complex scenarios like low light, obstructions, or screen films.
Ressourcen
Specifications for GMA4433 Scan Module
GMA4433 Scan Module | |
Dimension | |
Communication Interface | USB, TTL232, RS232(needs customized) |
Operating Voltage/Current | DC5V/140mA |
Standby Current | 10mA USB 22mA UART |
Optical Resolution | 640*480 CMOS |
Skew, Pitch & Roll | Skew tolerance: ±55° from normal Pitch tolerance: ±55° from normal Roll tolerance: ±360° from vertical |
Field of view | Horizontal 43° Vertical 32° |
Illumination | White LED |
Symbol Decode Capability | 1D: Code 128(ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Codell, Intereaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial25, IATA25, MSI Plessey, GS1 DataBar, Plessey, Febraban, etc. 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, HanXin Code, Dot code, Composite |
Ambient Light Immunity | Max 100,000lux |
Operating Temperature | -20°C~55°C |
Storage Temperature | -40°C~70°C |
Humidity | 5% - 95% non-condensing |
Certificate | ROHS, REACH, Optical Safety(IEC62471) |
Decode Range |
